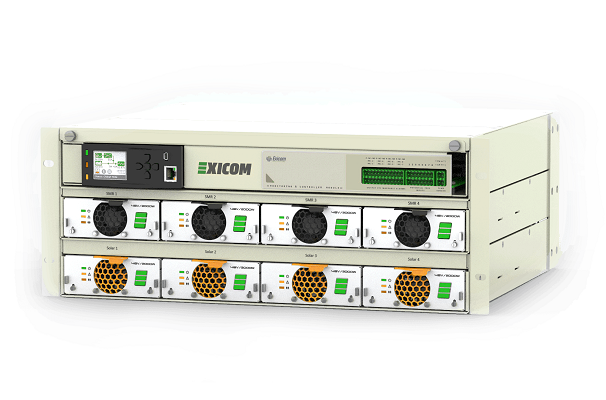

48V/16kW Hybrid Power System
Technical Specifications
| AC Input | Three phase: 3L+N+PE; 90-300Vac, 220Vac (nominal) |
| Solar input | 120-400Vdc |
| Solar termination | UIK Terminal blocks (max. arrays: 4) |
| MPPT efficiency | +99% allowing for ~100% panel utilization |
| Output voltage | 42-58Vdc (54 Vdc nominal) |
| Output power | 16kW (8kW from rectifiers, 81W from solar chargers) |
| Low voltage disconnect | Battery LVD (default 200A), Optional load LVD (default 200A) |
| Battery path protection | 125A x 2 battery breaker/125A x 2 fuse |
| DIN mounted breakers | 8 configurable for battery (max 2), NPL, PL Loads (18mm size) |
| Remote operation | Ethemet for local/remote monitoring & control via web browser |
| Metering | Solar Wh, DG kWh |
| Digital Inputs and Outputs | 8 opto isolated digital inputs, 8 NO/NC relay outputs |
| DG genset control | Yes, based on pre-set time, battery SoC or voltage |
| Maintenance | Solar isolator switch |
| Operating temperature | -40 to +75’C |
| Applicable Solar Chargers | Photon-II 48V/2kW Charger |
| Applicable rectifiers | Serenity 48V/3kW Rectifier |
| Applicable controllers | M1000-X, M2000 |
| Applicable standards | EN 60950-1, EN 55022 (Class A), EN 55024, EN 300019-1-1/2/3, ROHS complied |
