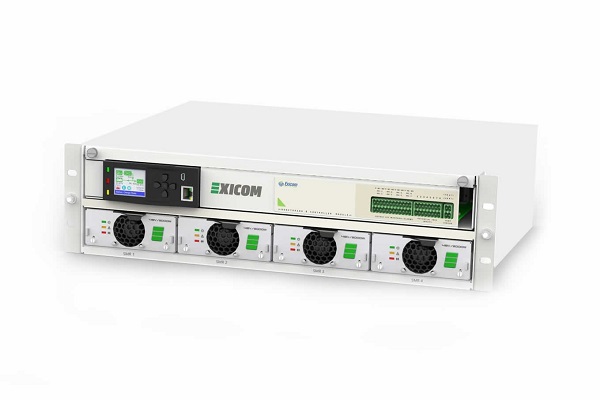

48V/8kW Power System

Technical Specifications

AC Input L+N+PE; 90-300Vac (P-N)
Frequency 45-66Hz
Output Voltage 42-58Vdc (54 Vdc nominal)
Output power/current 8kW/167A
Low voltage disconnect Battery LVD (default 125A), optional load LVD (default 125A)
Battery path protection 125A x 2 battery breaker
DIN mounted breakers 16 (18mm size) configurable for battery, NPL and PL loads
Remote Operation Ethemet for local/remote monitoring & control via web browser
Digital Inputs and Outputs 8 opto isolated digital inputs, 8 NO/NC relay outputs
Operating temperature -40 to 75’C
Applicable rectifiers Quantum 1.1kW, Serenity 2kW, Serenity 3kW
Applicable controllers M1000-H, M1000-X, M2000
Applicable standards EN 60950-1, EN 55022 (Class B), EN 55024, EN 300019-1-1/2/3, ROHS complied
