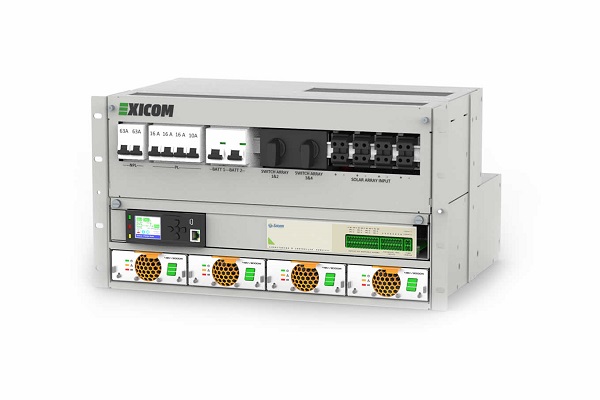

48V/8kW Solar Power System
Technical Specifications
| Solar Input | 20-400Vdc |
| Solar termination | UIK Terminal blocks (max. arrays: 4) |
| Output Voltage | 42-58Vdc (54 Vdc nominal) |
| Output power/current | 8kW/167A (max) |
| Low voltage disconnect | Battery LVD (default 125A), Optional load LVD (default 125A) |
| Battery path protection | 125A x 2 battery breaker |
| DIN mounted breakers | 6 configurable for NPL, PL loads (18mm size) |
| Remote operation | Ethemet for local/remote monitoring & control via web browser |
| Metering | Solar Wh, DG kWh |
| Digital Inputs and Outputs | 8 opto isolated digital inputs, 8 NO/NC relay outputs |
| DG genset control | Yes, based on pre-set time, battery SoC or voltage |
| Maintenance | Solar isolator switch |
| Operating temperature | -40 to +75’C |
| Applicable Solar Chargers | Photon-II 48V/2kW Charger |
| Applicable controllers | M1000-X, M2000 |
| Applicable standards | EN 60950-1, EN 55022 (Class A), EN 55024, EN 300019-1-1/2/3, ROHS complied |
