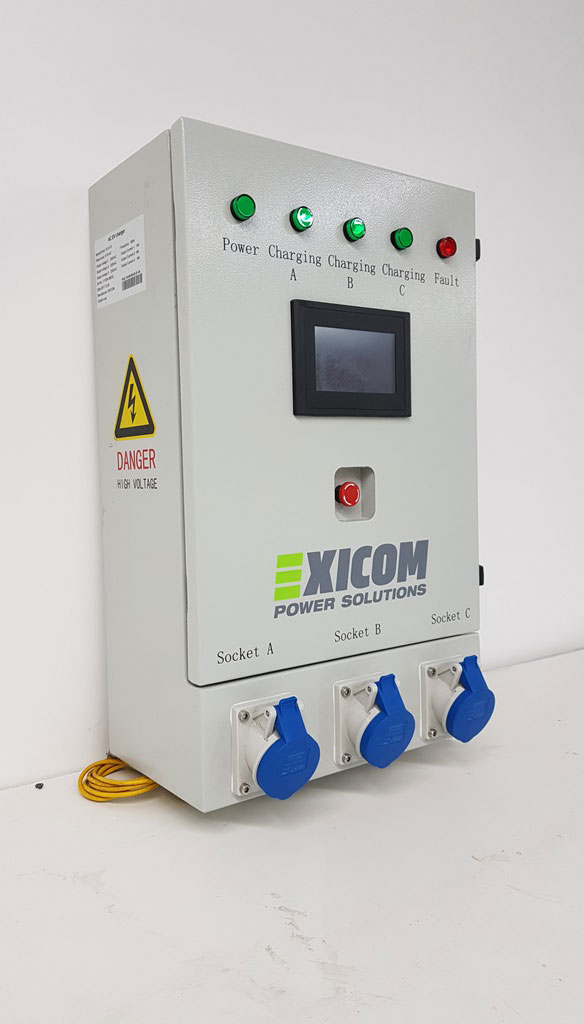

9.9kW AC001 Charger
Technical Specifications
| 9.9kW | |
| EVSE Type | EVSE Type |
| Energy Transfer Mode | Conductive |
Input specifications
| Input AC Supply
system |
3Ø, 5 Wire AC system
(3Ph+N+PE),50Hz |
| Input Voltage | Nominal voltage: 415Vac, 180-280Vac |
| Input Frequency | Nominal Frequency 50Hz, Operating Frequency Range:45-55Hz |
Output Specifications
| Output Voltage | Nominal Output Voltage:230Vac |
| Output Connector | IEC 60309 Socket |
| Output Power | 3.3kW (230 V, 15 A) |
| Number of Outputs | Three |
| Protection | Over Current, short Circuit, Over Voltage, Under Voltage, Ground Fault, Surge Protection, Over temperature, Residual Current Detection |
User Interface
| Authentication | App/OTP/QR (As per requirement) |
| Display | 4.3-inch TFT Touch LCD |
Communication Specifications
| Protocol (EVSE & Central Server) | OCPP 1.6 J |
| Communication between EVSE and EV | As per IEC61851-1 |
Mechanical Specifications
| Dimension | 550 x 340 x 180 mm (H x W x D) |
| Mounting Type | Wall Mount/ Pedestal Mount /Poll Mount |
