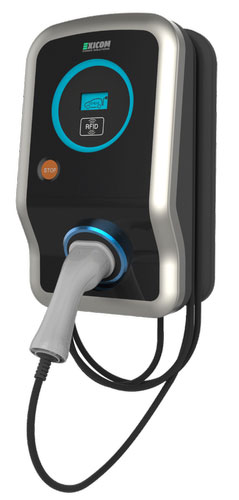

AC Type 2 chargers
Technical Specifications
| 7.5kW 11kW 22kW | |
| EVSE Type | EVAC Type 2 |
| Energy Transfer Mode | Conductive |
| Input AC Supply
system |
1Ø, 3 Wire system 3Ø, 5 Wire AC system 3Ø, 5 Wire AC system
(1Ph+N+PE) (3Ph+N+PE) (3 Ph+N+PE) |
| Input Voltage | Nominal voltage: 230Vac, Operating Voltage Range:180-280Vac |
| Input Frequency | Nominal Frequency 50Hz, Operating Frequency Range:45-55Hz |
| Output Voltage | Nominal Output Voltage:230Vac |
| Maximum Output
Continuous Current |
32A 16A per phase 32A per phase |
| Output connector Type | IEC62196-2, Type 2 |
| Output Power | 75kW 11kW 22kW |
| Number of Outputs | One |
|
Protection |
Over Current, short Circuit, Over Voltage, Under Voltage, Ground Fault, Surge Protection, Over temperature, Residual Current Detection |
| Authentication Method | RFID/Mobile application (through Bluetooth/Wi-F-/OTP) |
|
Visual indicators |
Basic indications: Errors indication, Presence of input supply indication, charging indication |
| Display | Optional |
| Communication between EVSE & Central Server |
Open Charge Point Protocol (OCPP) v1.6 (optional) |
| Communication between EVSE and EV |
As per IEC61851-1 |
