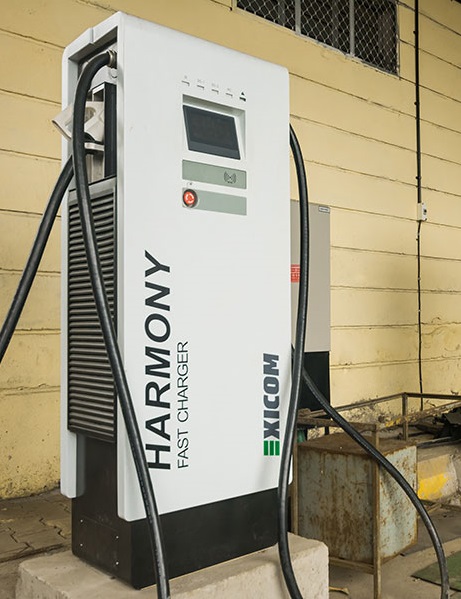

Fast Combined Charge Solutions (142kW) (CCS CHAdeMO & AC Type-2)
Technical Specifications
| Power
Input |
Input Voltage 415VAC; 3-phase/L1, L2, L3, N, PE |
| Input Voltage Range 320VAC to 530VAC | |
| Input Frequency Range 45Hz-60Hz | |
| Power Factor >0.98 | |
| Efficiency ≥95% | |
| Max. Output Power 142kW (120Kw DC, 22Kw AC) |
| Power
Output |
DC Output 1 CCS 2, 200-750 VDC |
| DC Output 2 CHAdeMO, 200-750 VDC | |
| AC Output Type 2, AC 3 phase, 22kW max. | |
| Charging Operation Cyclic Mode/Parallel Mode |
| Protection &
Safety |
Over current, Under voltage, Over voltage, Residual current,
Protections Surge protection, Short circuit, Over temperature, Ground fault, Insulation fault, Emergency Stop etc. |
|
Communi- cation |
Charger & Ethernet (standard); (4G Fallback 3G) (optional)- OCPP Central Server v1.6 |
| Charger & Vehicle CAN (CHAdeMO), PLC (CCS), PWM (AC Type 2).
As per IEC/EN 61851-1 |
|
| Language English |
| User Interface &
Control |
Display 7” TFT LCD Touch screen |
| Push Button Mushroom Type Emergency stop switch (Red) | |
| Visual Indication Error indicator, Presence of input supply,
State of charger indicator |
|
| Charge options Auto Charge, Mode Selection (Time/Amount/Power/SOC) | |
| Charging Mode Mode 4 for DC charging; Mode 3 for AC charging
(as per IEC/EN 61851-1) |
| Authentica- tion |
User Authentication RFID/APP/OTP/QR (as per requirement) |
|
Environment |
Operating Temperature -20°C to 75°C (derating from 50°C) |
| Storage Temperature -20°C to 80°C | |
| Humidity 5% to 95% non-condensing |
|
Mechanical |
IP Rating IP 54 |
| Cooling Forced cooling | |
| Dimensions (H x W x D) (mm) 1800x650x500 | |
| Charging Cable length 5 meters |
