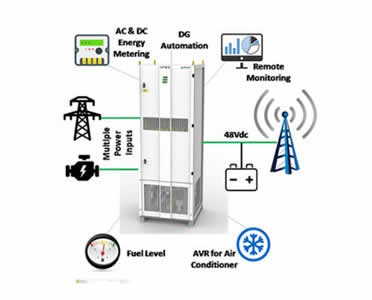

Grid Genset Hybrid Systems
Technical Specifications
| Input connection | 3/2/1 Line Neutral Earth |
| Input Voltage | 1×230/2×230/3×230 (VRMS) AC (L-N) |
| AC Input Voltage | 85 to 300Vac |
| DC output Voltage Range | 42 to 58Vdc |
| Power Rating | Up to 27KW |
| Efficiency | 96% (Rectifier Level) |
| Battery path protection | Fuse/Circuit Breaker |
| Surge Protection | Type 2 (class C) at System Level |
| Automation | Available (DG, Mains, Battery Bank and Solar) |
| Energy Metering | Grid Kwh, Genset Kwh, Battery Kwh, Individual Loads Kwh |
| Best Phase Selection | Optional best phase selection for Aircon |
| SVR | Optional 8Kva or 15kVa isolated/Non isolated SVR |
| Mounting | Floor Mount |
| Controller | M-1000 |
| Rectifier Module | Serenity (3000W)/Quantum (3000W) |
