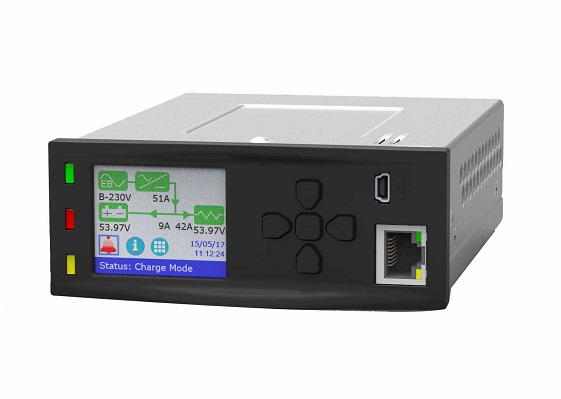

M1000-X

Technical Specifications

General:

  • Operating voltage: 20V-70V.
  • Power consumption: 5W (Nominal).
  • Dimensions (WxDxH): 130mm x 145mm x 43mm.
  • Operating temperature range: -20°C to +60°C.

System Interfaces/Slave Units:

  • Supports small to large systems by connecting upto 100 rectifiers.
  • Dynamic battery current control and temperature compensation.
  • Upto 6 voltage, 7 current channels and 3 temperature channels with slave interface unit.
  • Up to 5 LVD controls.
  • Up to 40 potential free inputs/outputs.
  • Support for DG control and renewable hybrid system.

Communication Interfaces:

  • 2 x isolated system CAN bus.
  • 2 x isolated RS485-configurable for multiple slave devices and functions.
  • Modbus RTU interface for SCADA system.
  • 1 x RS 232-For GSM/GPRS/3G modem.
  • 10/100 Mbps Ethernet interface-MDI/MDI-X, Static/DHCP IP, IPv4/IPv6, HTTP, SNMP V2c /V3, SNTP and FTP.
  • LEDs for alarm indications.
